2022 Price List and Order Form

Model train electronics from RailroadConcepts

All products can be ordered direct using a credit card or Personal Check. When sending a check in the mail please fill out the shopping cart as normal and then PRINT.

After entering an item press CONTINUE SHOPPING in the new window to add additional items. Items can be added or deleted at any time.
For any questions please send e-mail to "info" at rr-concepts.com.

Please note that it is not necessary to have a PayPal account to use a credit card Select "Don't have a PayPal account" and then enter the credit card information as usual on the checkout page.

Shipping will be porportional to order. Standard carrier is 2 day USPS Priority Mail unless previous arrangements are made. Shipping outside of USA will be more and will be automatically set on the order form.

If this is a gift add "GIFT" to cart here. We will not send an order reply e-mail and the package will be sent without our name on the box. Please contact us for the status of the oder.

YardMaster

The YardMaster is a multi-function "do-it-all" module but sometimes only a basic operation is needed. For this reason the YardMaster can be ordered in two different configurations; the YardMaster-SM, and the Full Featured YardMaster.

The YardMaster-SM is a cost-effective version that can be used for StationMaster and simple switching applications. (Reversing loops, etc) If you are connecting to a StationMaster or just need the internal relay and turnout controls then this version will work. The SM version will not contain the current sensor, external relay control, or signal lamp control relays.

The standard Full Featured YardMaster contains all features and will work everywhere in all hookups. This is the most flexible unit and recommended if the setup will be changed in the future. It will work with or without a StationMaster hookup. The YardMaster is also available as a bare PC board without the plastic enclosure which is how many of our competors offer their products. (Please inquire about the bare board version for a reduced price)
YardMaster SM Version

Does not include signal light relays, or current sensor.
This is the good choice when used with a StationMaster.

$70
YardMaster Full Featured

Signal light relays and current sensor included.

$82

Full Featured YardMaster-5



StationMaster

The StationMaster is available in VERSION 5 and VERSION 6 options. Both perform all StationMaster operations, but the 6 version has additional hardware features. See the StationMaster page for details. The StationMaster-5 XL Full Featured versions also include reversing controls, as does the 6 version.

All StationMaster units are available in 4 AMP or 10 AMP configurations. (This is the maximum AMP load, not the rating of the transformer.) For reference, An LGB 0-4-0 requires about 1 AMP, so you could run 4 engines simultaneously with 4 AMPs. A Bachmann 4-6-0 requires about 1/2 AMP. You could run 8 at the same time with 4 AMPs.

StationMaster-5 STATION STOP

Classic version which provides one directional operation.
For Station Stops, Block Control, Multiple train siding operations, etc.
$130 - 4 AMP

$140 - 10 AMP

StationMaster-5 XL Full Featured with Reversing

All features of the STATION STOP version with additional controls for back-and-forth operations.
$140 - 4 AMP

$150 - 10 AMP

StationMaster-6
All features of the XL Full Featured version with additional hardware to allow bypass operations, signal light controls, external relay control, additional sensor inputs, minimum speed settings, etc.
$150 - 4 AMP

$160 - 10 AMP

Station Stop KIT

Everything needed for a full deceleration, pause, acceleration station stop. Includes 1 StationMaster-5 STATION STOP (4 AMP), 2 Sensors, one Magnet, and the Screwdriver/Magnet tool. With this kit the train can either perform the self-adjusting "Creep Stop" deceleration, or two separate station stops can be done on a circle with 2 stations. See the StationMaster manual for details.

$140 Large Scale:
Small Trains (N/HO/On30, etc):


4 AMP versions shown. Click to see larger image. Sensors and magnets sold separately.




StationMaster / Reverser

The StationMaster / Reverser is used for back-and-forth hookups with either diodes on the ends, or sensors. When using sensors, in-between stops are possible. The StationMaster and StationMaster/Reverser use identical electronics and look the same (except for the label), but contain completely different software.

StationMaster-5 / Reverser 4 AMP (sensors sold separately) $130
StationMaster-5 / Reverser 10 AMP (sensors sold separately) $140

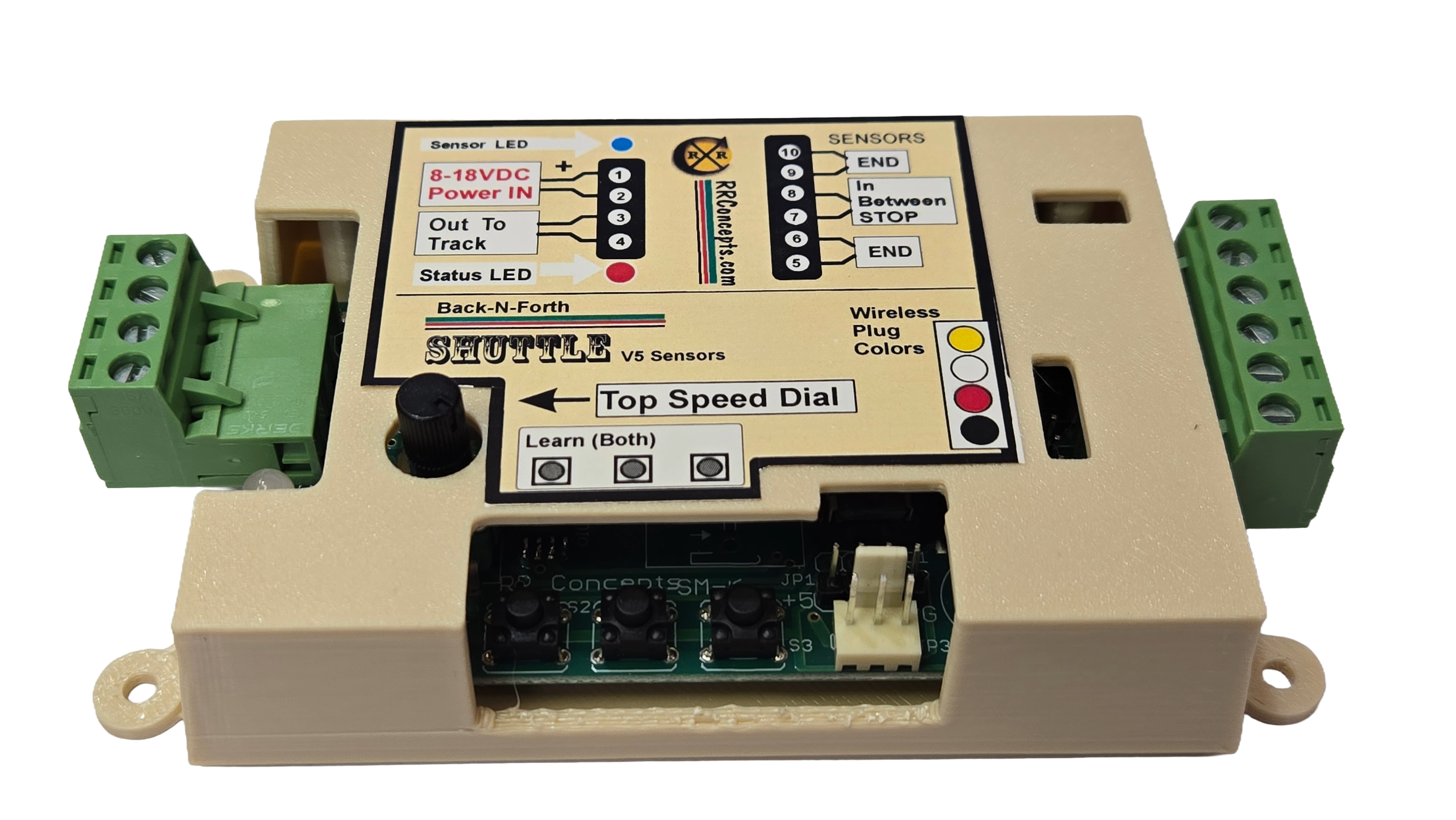

4 AMP version show. Sensors and magnets sold separately




Sensors

Train Sensors, G Scale, 2 pack $9
1 Dozen G scaleTrain Sensors $40
Train Sensors HO/N $4.50
Very sensitive weather resistant sensors that can be completely hidden under the track. Sensors are also excellent as general purpose reed switches which can be mounted in locomotives for chuff-sensors, whistle triggers, etc. Large sensors have self-adjesive tape which allows for easy mounting. Small sensors are 1/16 inch diameter cylindrical hard plastic. Magnets are required for triggering. (sold separately)
Package of 2 sensors shown.



Magnets

Train Magnet, G Scale $4
Train Magnet HO/On30 Scale$2.50

Very strong Neodymium Iron Boron magnets with removable magnet mounts (G Scale only) that are used to trigger Train Sensors. Strong magnets allow up to 1 inch sensing distance for G scale and about 1/2 inch HO scale.




Screwdriver + Magnet Tool

Screwdriver
Screwdriver + Magnet Tool $2.00

Screwdriver with small blade perfect for screw down terminals with strong magnet on the end for triggering sensors.




Protection & Reversing Diodes

10 AMP Diode with pigtails and wire nuts. $1.50
10 AMP diode with attached pigtail wires and wire nuts for easy installation, or wired leads for attaching to track isolators. Used to prevent damaging reversed voltage from entering system. Recommended for applications where a StationMaster is attached to a YardMaster and also for reversing hookups. See manuals for details and usage.
10 AMP Diode with leads. $0.50 each
3 AMP Diode with leads. $0.50 each
Reversing Diode Kit - includes 5 self-tapping screws and 2 diodes (3 AMP) $2.50 each



Interconnection Cables

Straight cable for StationMaster to Yardmaster-5 connection. $3.50 each
Startech TX3SPLIT12 Y Cable for StationMaster to multiple YardMaster-5 connections. Used for multi-track sidings. $5.50 each
5



External Relay Modules

YardMaster Relay + cable $9.50 each

10 AMP Relay module that can be added to the YardMaster for advanced hookups. Includes attaching data cable. See the YardMaster manual for details.








Track Isolators

Code 332 Isolator (Large scale trains) $5.00 each

Split-Jaw code 332 brass track isolator. Add a wire to the screws for easy track connections.






Repair Service

Repair service $35 each

Repair service for out of warranty units. (older than 1 year) Return address will be sent with order. Does not include software updates.



Upgrade Service

Upgrade service $45 each

Upgrade service for Legacy StationMaster-5 units to convert to XL. Includes upgrade of necessary hardware components to support new software, and incudes software upgrade. Return address will be sent with order.






Free Stuff

5mm LED Free Bi color RED GREEN LEDs, common anode, diffused. These would work for a YardMaster signal light. (See manual for details)
5mm LED Free Bi color RED GREEN LEDs, common anode, water clear. These would work for a YardMaster signal light. (See manual for details)
5mm LED Free RED.
1000uf capacitors Free Come and get 'em. Too large to fit inside our units so we have no use for them.

We are giving away some parts which are no longer needed free with any order. Please send an e-mail with the quanity desired.
